BNC Plug RF Connector 75 Ohm for RG59 – Crimp DC to 500 MHz

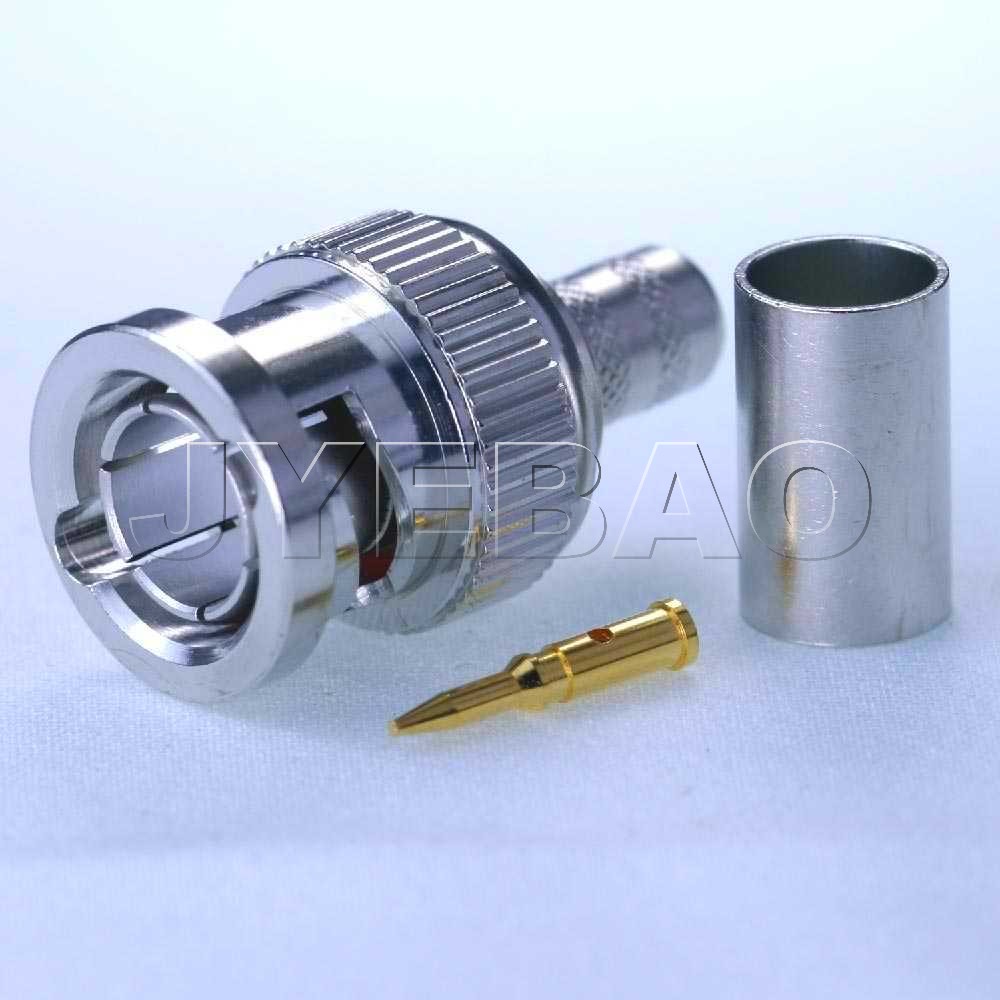

Product Description JYEBAO BNC3100-0059 – 75 Ω BNC Plug (Male) Crimp Connector for RG59 (DC–500 MHz) The BNC3100-0059 is a 75 Ω straight BNC plug (male) connector designed for terminating RG59 coax using a production-friendly crimp-style build (body centre pin ferrule). It’s commonly used in 75 Ω systems such as video/CCTV and general BNC interconnects where RG59 is standard. Common use cases Video / CCTV coax: Build or repair RG59 BNC leads for analogue video and CCTV installations. 75 Ω patch leads: Short RG59 jumpers for racks, panels and equipment interconnects. Service & maintenance: Fast re-termination of damaged RG59 cable ends with repeatable crimp tooling. Key features Series: BNC Gender: Plug (Conventional Male) Geometry: Straight Cable type: RG59 Impedance: 75 Ω Frequency range: DC–500 MHz VSWR: ≤ 1.2 (DC–500 MHz) Interface: MIL-STD-348B RoHS: Compliant Electrical specifications (datasheet) Impedance 75 Ω Frequency range DC to 500 MHz VSWR ≤ 1.2 (DC to 500 MHz) Insertion loss ≤ 0.1 × f(GHz) dB Insulation resistance ≥ 5000 MΩ Contact resistance (inner) ≤ 1.5 mΩ Contact resistance (outer) ≤ 1.0 mΩ Dielectric withstand (sea level) 1500 Vrms Working voltage (sea level) 500 Vrms Mechanical (datasheet) Recommended coupling torque: 0.6 to 2.5 in-lb Durability: 500 mating cycles (datasheet value) Weight: 9.04 g Crimp tooling & assembly (datasheet) Crimp tool: CRT-1 or CRT-2 Crimp insert: INSERT-E Centre pin can be crimped or soldered (datasheet assembly note), then ferrule is crimped to finish. Insert reference: square 1.6 mm section for pin; hex 6.5 mm section for ferrule (per instruction sheet). Materials & plating (datasheet) Body / coupling nut / ferrule: Brass, Tin-Zinc-Copper alloy plating over copper Contact pin: Brass, Gold plating over Nickel-Phosphorus alloy over copper Insulator: PTFE (Teflon) Gasket: Silicone Downloads Datasheet – BNC3100-0059 (PDF) RFShopUK – Other BNC Products </strong
